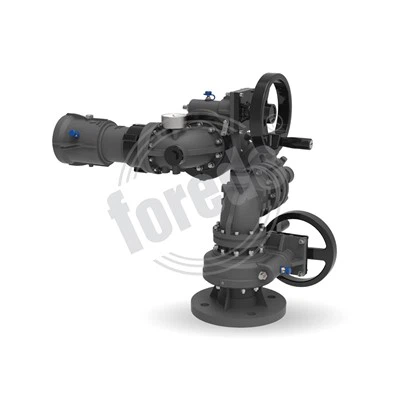

Ua Npuas Ncauj Monitor Rau Hluav Taws Xob
Foam saib rau kev tua hluav taws yog phau ntawv tswj nrog ib tus tiller kov los hloov lub viav vias ntsug thiab kab rov tav. Txawm hais tias lub tshuab ua npuas dej no muaj ib qho tiller kov, nws yog nrog cov xauv kom ruaj khov rau kev ua npuas ncauj rau kev tua hluav taws, ib lub xauv yog rau ntsug, lwm qhov yog rau kab rov tav, kaw qhov ntsug-xauv thiab tso tawm kab rov tav-xauv, ces koj tuaj yeem hloov qhov kab rov tav rotation, los yog kaw cov kab rov tav-xauv thiab tso lub ntsug-xauv tib lub sijhawm, ces koj tuaj yeem hloov lub viav vias ntsug.
Cov lus qhia ntawm no ua npuas ncauj saib rau kev tua hluav taws raws li hauv qab no.
Cov dej ntws rov qab yog 1440LPM-1920LPM-2880LPM, nrog lub tshuab ua npuas dej, tus nqi ntws tsis tu ncua. Lub sij hawm ua npuas ncauj yog tshaj 6 zaug. Zoo rau ua npuas ncauj expansion.
Kev ua haujlwm siab ntawm lub tshuab ua npuas dej no rau kev tua hluav taws yog 8 Bar, thiab qhov max. Jetting ntau ntawm cov saib no tuaj yeem ncav cuag 65 meters ntawm 2880LPM.
Txoj kev txav ntsug ntawm qhov ntsuas dej no tuaj yeem ncav cuag -45 degree rau +75 degree, thiab kab rov tav rotaion ntawm lub ntsuas dej no yog 360 degree . Tau kawg, cov lus tsa suab yog hloov tau, nws tuaj yeem hloov ntawm koj tus kheej rau koj qhov kev thov.
Lub qhov hluav taws xob loj yog 2.5 "NH poj niam / txiv neej xov, qhov inlet yog 3" flange, thaum lwm tus qauv flange muaj.
Ua npuas ncauj saib rau kev tua hluav taws yog kev tsim kho aluminium alloy, thaum lub tiller kov yog ua los ntawm stainless hlau.
Qauv | PL24B | PL32B | PL48B |
Tus nqi ntws | 1 440 LPM | 1920 LWM | 2 880 lmx |
Ua hauj lwm siab | 8 Bar | 8 Bar | 8 Bar |
Foam Jetting Range | 45m ua | 55m ua | 65m ua |
Dej Jetting Range | 40 meters | 50 meters | 60 meters |
Ua Npuas Ncauj | Ntau dua lossis sib npaug li 6 npaug | Ntau dua lossis sib npaug li 6 npaug | Ntau dua lossis sib npaug li 6 npaug |
Kev sib hloov Horizontal | 360 degree | 360 degree | 360 degree |
Txhim kho Vertically | -45 degree rau +75 degree | -45 degree rau +75 degree | -45 degree rau +75 degree |
Inlet | DN80 (3 ") | DN80 (3 ") | DN80 (3 ") |
Qhov hluav taws xob | 2.5" NH | 2.5" NH | 2.5" NH |
Cov khoom tseem ceeb:
FAQ:
Q: Cov qauv puas muab pub dawb?
Ob peb yam khoom me me xws li sprinkler hniav npog tuaj yeem muab pub dawb, tab sis tus neeg yuav khoom yuav tsum them tus nqi thauj khoom. Lwm cov khoom yuav tsum tau lees paub raws li qhov xwm txheej tshwj xeeb.
Q: Lub sij hawm tsim khoom ntawm tus qauv yog dab tsi?
Ib qho qauv yuav tsim nyob rau hauv 15 hnub
Cov ntaub ntawv xaj xaj:
Nyob zoo cov neeg muas zaub,
Ua ntej kev txiav txim, thov hu rau peb pab neeg muag khoom los tham txog kev txiav txim cov ntaub ntawv, xws li Tus Qauv Zauv, Flow Rate, Khoom siv, Txoj Kev Tswj, Pob, thiab lwm yam.
Yog tias koj muaj lwm yam kev xav tau lossis xav paub ntau ntxiv txog peb cov khoom, txais tos hu rau thiab. Peb pab neeg muag khoom thiab Technical Department txaus siab pab txhawb koj.
Cim npe nrov: ua npuas ncauj saib rau tua hluav taws, Tuam Tshoj, manufacturers, lwm tus neeg, lag luam wholesale, nqe
1) Aluminium alloy kev tsim kho;
2) Tiller tswj;
3) Tus nqi ntws: 24/32/48 LPS (yeem);
4) Muaj rau dej thiab ua npuas ncauj ob leeg;
5) 360 degree tig kab rov tav;
6) -45 degree rau +75 degree nce vertically;
7) Flange tus qauv: BS4504, ANSI150, GB, thiab lwm yam.
