Khoom Description

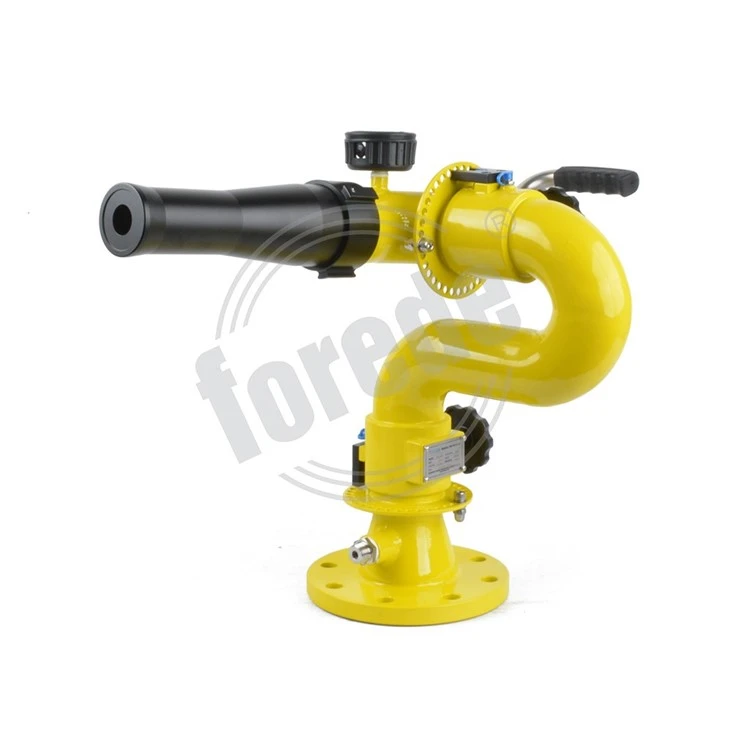

Tiller Dej Truck Cannon
1. Txaus siab rau tus nqi ntws thiab siab
- Qauv TFS1.AZ020 muab qhov muaj zog txaus ntawm 1200LPM, thaum TFS1.AZ030 muab qhov muaj zog tshaj 1800LPM.
- Ob qho qauv ua haujlwm tau zoo ntawm kev ua haujlwm siab ntawm 0.8 MPa thiab tuaj yeem tiv taus qhov siab tshaj plaws ua haujlwm ntawm 1.6 MPa, ua kom ntseeg tau tias kev ua tau zoo nyob rau hauv siab -xav tau scenarios.
2. Exceptional Throw Range
- TFS1.AZ020 muaj qhov dej pov tseg ntawm 50 meters lossis ntau dua, nrog npuas dej ncav cuag tshaj 55 meters.
- TFS1.AZ030 ntxiv txhim kho kev pab cuam, ua tiav cov dej pov tseg yam tsawg kawg 60 meters thiab ua npuas ncauj ncav cuag 65 meters lossis ntau dua.
Qhov kev nthuav dav no pab cov neeg tua hluav taws tua hluav taws zoo los ntawm kev nyab xeeb, txhim kho kev nyab xeeb tag nrho thiab muaj peev xwm tswj tau.
Cov khoom nthuav dav
Khoom Feature
Tus nqi ntws
Tus nqi ntws ntawm TFS1.AZ series tiller-tswj Tiller Dej Truck Cannon yog qhov tseem ceeb rau kev hloov mus rau qhov sib txawv hluav taws kub. Nrog rau cov kev xaiv ntawm 1200LPM thiab 1800LPM, nws muab cov dej ntshiab / ua npuas ncauj kom tshem tawm cov hluav taws kub ntawm qhov sib txawv, kom ntseeg tau tias kev tua hluav taws zoo.
Ua Haujlwm Siab
Kev ua haujlwm siab yog qhov tseem ceeb rau kev txhim kho kev ua tau zoo nyob rau hauv ib puag ncig hnyav. 8 bar (0.8 MPa) ntsuas kev ua haujlwm siab kom ntseeg tau cov dej / ua npuas dej zoo ib yam, thaum lub 1.6 MPa max ua haujlwm siab muab kev nyab xeeb rau kev ua haujlwm tua hluav taws.
Foam Jetting Range
Cov dej dav hlau ntau yam ntawm TFS1.AZ series Tiller Dej Truck Cannon ua rau ntev -kev tua hluav taws, nrog 50m rau AZ020 thiab 60m rau AZ030. Cov kab no tso cai rau cov neeg tua hluav taws los tawm tsam loj - thaj chaw hluav taws kub los ntawm qhov chaw nyab xeeb, txo qhov kev pheej hmoo kis thiab txo qis kev puas tsuaj.
Dej Jetting Range
Lub tshuab ua npuas ncauj ntau yog tsim los rau Class B kua roj hluav taws kub, ncav cuag 55m rau AZ020 thiab 65m rau AZ030. Qhov kev ncua ntev no tso cai rau kev siv cov tshuaj ua npuas dej los ntawm thaj chaw nyab xeeb, kom ntseeg tau tias muaj kev cuam tshuam ntawm cov nplaim hluav taws kub.
Ua Npuas Ncauj
Ua los ntawm kev tsim- nyob rau hauv kwj shaper, lub nozzle muab tsom, ruaj khov dej / ua npuas dej ntws kom pom kev nkag mus. Tus du -bore anodized aluminium alloy nozzle ua kom cov qauv ntws zoo ib yam, ua kom muaj hluav taws kub hnyiab thiab ua haujlwm txias.
Qhov hluav taws xob
TFS1.AZ series Tiller Dej Truck Cannon nta tus qauv 2.5 "NH qhov hluav taws xob, ua ke nrog 3"/4" BS4504 PN16 flange inlet (customizable).
Technical Parameter
Yuav ua li cas thiaj tswj tau lub Tiller Dej Truck Cannon?
#### 1. ** Kev tu tsis tu ncua **
Khaws cov phom dej kom tsis txhob muaj av, khib nyiab, thiab pob zeb hauv av tsim kom muaj dej ntws zoo thiab meej lub peev xwm.
- Yaug rab phom tom qab txhua qhov siv nrog dej huv.
- Siv me me, tsis yog - cov tshuaj ntxuav corrosive los so SS304 nto maj mam.
- Tshawb xyuas thiab ntxuav lub taub hau kom zoo kom tsis txhob txhaws thiab ua kom cov qauv tshuaj tsuag zoo ib yam.
#### 2. **Lubrication ntawm Tsiv Qhov Chaw**
Lub kaum sab xis thiab qhov siab muab ntau yam tswj, thiab lubrication pab tswj lawv txoj haujlwm du.
- Siv cov zaub mov-qib lossis marine- qib roj nplua nyeem rau ntawm cov pob qij txha thiab cov tshuab nce siab tsis tu ncua.
- Tsis txhob muaj roj ntau dhau uas tuaj yeem nyiam plua plav lossis khib nyiab.
#### 3. **Saib cov ntsaws ruaj ruaj thiab kev sib txuas**
Txhim khu kev qha flange thiab qhov hluav taws xob sib txuas yog qhov tseem ceeb rau kev tswj xyuas qhov siab thiab tiv thaiv cov xau.
- Tshawb xyuas BS4504 PN16 flange seals thiab gaskets ib ntus rau hnav.
- Tighten bolts kom ruaj ntseg tab sis tsis txhob overtightening kom khaws flange kev ncaj ncees.
- Hloov cov ntsaws ruaj ruaj tam sim yog cov cim ntawm kev puas tsuaj tshwm sim kom muaj qhov xau- ua haujlwm dawb.
#### 4. ** Kev Ruaj Ntseg thiab Flow Monitoring **
Xyuas kom lub cannon dej ua haujlwm nyob rau hauv kev pom zoo siab txuas ntxiv nws lub neej kev pab cuam.
- Saib xyuas kev ua haujlwm siab kom nyob twj ywm tsis pub dhau 0.8 MPa qib pom zoo, tsis txhob siab tshaj qhov ua haujlwm siab tshaj plaws ntawm 1.6 MPa.
- Siv cov ntsuas ntsuas ntsuas ntsuas qhov xav tau-1200 LPM rau TFS1.AZ020 thiab 1800 LPM rau TFS1.AZ030.
#### 5. ** Kev Xeem Ua Haujlwm Sijhawm**
Kev sim ua haujlwm tsis tu ncua txhawm rau txheeb xyuas qhov tseeb kab rov tav thiab nce siab tswj, nrog rau kev cuam tshuam zoo.
- Ua cov dej num niaj hnub thiab ua npuas dej kom ntseeg tau tias cov tshuaj tsuag pov tseg thiab cov qauv raug.
- Kho cov kaum sab xis thiab xyuas cov kev sib hloov kom zoo kom paub meej tias lawv ua tau raws li koj qhov kev xav tau ua haujlwm.
#### 6. **Kev Tiv Thaiv**
SS304 stainless hlau muaj zoo heev corrosion kuj; reinforcing qhov no kom ntseeg tau tias ntev dua.
- Khaws cov cannons dej rau hauv qhov chaw qhuav, chaw nkaum thaum tsis siv.
- Xav txog kev tiv thaiv npog los tiv thaiv plua plav thiab ib puag ncig.
#### 7. ** Kev Tshawb Fawb thiab Kev Pabcuam **
Rau kev ntseeg siab tshaj plaws, kom koj cov cuab yeej ua haujlwm tau tshuaj xyuas txhua xyoo.
- Cov kws tshaj lij tsim nyog tuaj yeem txheeb xyuas qhov kev txhim kho thiab ua kom txhua yam khoom ua tau zoo ntawm qhov ua tau zoo.
|
Qauv |
TFS1.AZ020 |
TFS1.AZ030 |
|
Tus nqi ntws |
1200 LPM |
1800 LPM |
|
Ua Haujlwm Siab |
0.8 MPa rau |
0.8 MPa rau |
|
Max Ua Haujlwm Siab |
1.6 MPa siab |
1.6 MPa siab |
|
Kev khiav dej num (dej) |
Ntau tshaj lossis sib npaug li 50 m |
Ntau tshaj lossis sib npaug li 60 m |
|
Throw Range (ua npuas ncauj) |
Ntau tshaj lossis sib npaug li 55 m |
Ntau dua lossis sib npaug li 65 m |
|
Kab rov tav |
0℃~ 330℃(lub kaum sab xis customized) |
|
|
Lub kaum sab xis |
-45℃~ +75℃(lub kaum sab xis customized) |
|
|
Txoj Kev Loj |
2.5 '' (DN65mm) |
|
|
Qhov hluav taws xob |
2.5 '' NH |
|
|
Inlet |
3 '' / 4 '' BS4504 PN16 Flange, lwm tus customized |
|
Kev thov cheeb tsam
Kev pab cawm
Cov vaj tse nyob
Kev lag luam chaw
Chaw Pej Xeem
Cov lus nug nquag
Q: Kuv puas tuaj yeem xaiv qhov tshwj xeeb ntawm Tiller Water Truck Cannon?
Q: Yuav siv Tiller Dej Truck Cannon li cas?
Q: Puas tuaj yeem hloov lub taub hau ntawm Tiller Water Truck Cannon?
Q: Dab tsi yog Flange Standards rau Tiller Dej Truck Cannon?
