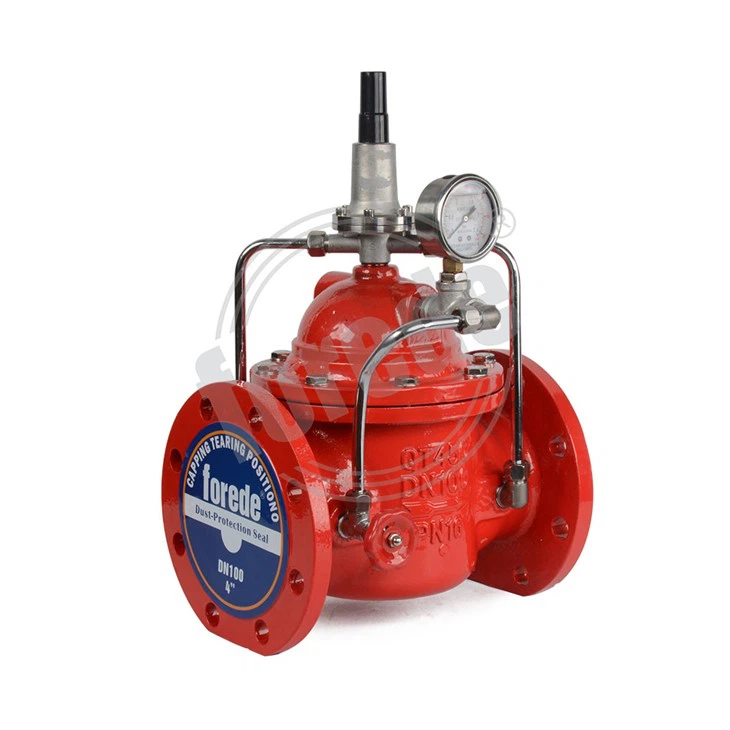

Flange Relief Valve
Lub valve muaj lub ntsiab valve thiab ib qho kev tswj xyuas sab nraud pilot valve. Nws yog tsuas yog ntsia nyob rau hauv lub bypass ntawm kev tiv thaiv dej system ntawm lub tsev los xyuas kom meej lub siab nyob rau hauv cov dej muab dej cheeb tsam upstream ntawm lub ntsiab valve. Thaum lub siab nyob rau hauv cov kav dej xa dej siab tshaj qhov teeb tsa ntawm lub siab nyem valve, lub siab nyem valve qhib los tiv thaiv cov raj xa dej thiab cov khoom siv los ntawm kev puas tsuaj vim overpressure. kev puas tsuaj. Lub valve no tsuas yog siv rau lub siab nyem ntawm qhov ntsuas hluav taws xob ntawm cov tsev siab siab, thiab yog ib qho khoom kho dua tshiab ntawm lub caij nplooj ntoos hlav-hom kev nyab xeeb valve.
Specification
| Qauv | Ntiv | Kev taw qhia | Kev sib txuas | Ua Haujlwm Siab |
Txuj
|
Xim |
|---|---|---|---|---|---|---|
| 500X-16Q | DN 40-DN500 | Ib qho kev taw qhia | Flange kawg | 1.0Mpa/1.6Mpa/2.5Mpa |
ANSI150LB / GB Standard / BS Standard
|
Liab / Xiav |
Cov kev xav tau ntawm installation
Lub lim yuav tsum tau nruab ua ntej lub siab nyem / txhawb nqa valve. Thaum kho, cov ntsia hlau ntawm tus tsav valve yuav tsum tau muab tshem tawm, pib lub twj tso kua mis kom cov dej ntws tawm ntawm lub siab nyem valve, thiab maj mam muab ntsia hlau rau hauv cov ntsia hlau kho kom maj mam nce siab kom txog thaum lub siab yuav tsum tau mus txog. Tighten lub ntsuas phoo tom qab teeb tsa
FAQ
Q: Koj puas tuaj yeem txais OEM?
A: Yog lawm, peb tsim qauv tsim rau peb cov neeg siv khoom.
Q: MOQ ntawm koj cov khoom yog dab tsi?
A: Peb MOQ yog ib qho (1) daim / teeb.
Q: Thaum twg yuav xa khoom?
A: Lub sijhawm xa khoom
-Sample Order: 1-3 hnub tom qab tau txais cov nyiaj them tag nrho.-
Kev txiav txim Tshuag: 3-7 hnub tom qab tau txais cov nyiaj them tag nrho
-OEM Order: 12-20 hnub tom qab tau txais qhov tso nyiaj.
3.Kev Pabcuam Tomqab Muag
5 xyoo warranty rau txhua yam khoom;
Yog tias koj pom cov khoom siv tsis zoo thawj zaug, peb yuav muab cov khoom tshiab rau koj dawb los hloov hauv kev txiav txim tom ntej, raws li kev paub txog cov chaw tsim khoom, koj tuaj yeem tau txais kev pabcuam zoo thiab kev pabcuam tomqab muag.
Cim npe nrov: siab nyem valve rau hluav taws sib ntaus system, Tuam Tshoj, manufacturers, lwm tus neeg, lag luam wholesale, nqe
Nta
Ua haujlwm siab: 10/16 Bar
Flange kawg: ANSI150LB / GB Standard / BS Standard;
Chav Khoom: 2CR13 / Stainless Hlau;
Bonnet Khoom: Cov Hlau Hlau, QT450;
Lub Cev Khoom: Cov Hlau Hlau, QT450;
Cov khoom siv foob: Cov Hlau Hlau, QT450, NBR;
Nto Finishing: Epoxy Liab lossis Xiav.
