Khoom Taw qhia:

PHF/B Inline ua npuas ncauj tov khoom yog siv los induct lub npuas dej concentrate nyob rau hauv cov dej ntws los muab proportioned tov ntawm cov kua concentrated thiab dej, rau cov khoom ua npuas ncauj.Txhua inductor yog tsim los rau ib tug predetermined dej [ressure muab qhov tseeb proportioning ntawm lub siab thiab tus nqi paug. Qhov nce lossis txo qis ntawm qhov nkag siab yuav ua rau muaj kev nce lossis txo qis hauv cov dej ntws, uas nyob rau hauv lem yuav hloov cov proportioning.

Xa kev nug

Hauj lwm lawm

Kev tsis

Khoom Description

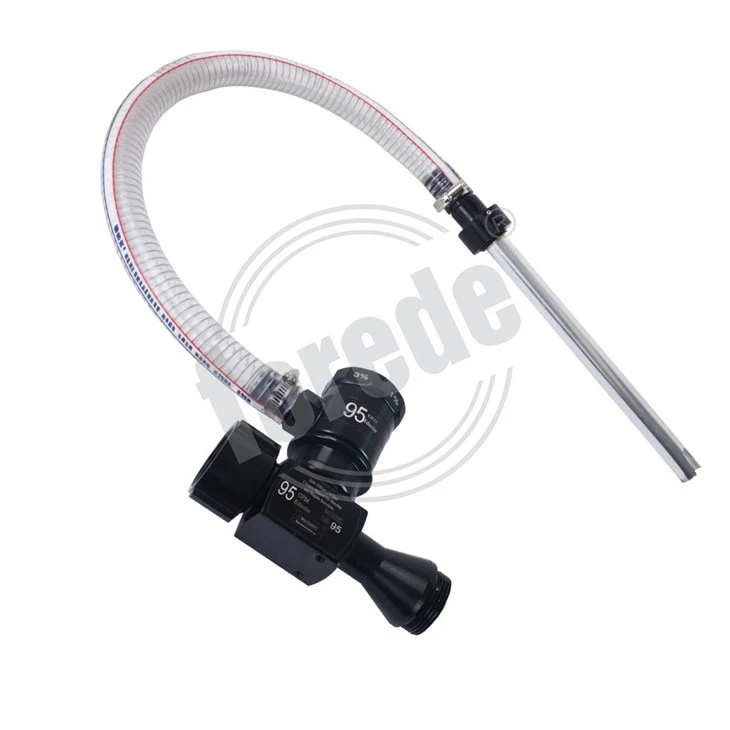

Portable Ua Npuas Ncauj Inductor

Hauv -Line Foam Mixer(tseem hu ua ib qho hauv -line eductor lossis proportioner) yog ib qho tseem ceeb hauv kev tua hluav taws ua npuas ncauj siv los sib tovua npuas ncauj concentratenrogdejlos tsim ib lub tshuab ua npuas ncauj rau kev tua hluav taws.

Pick-puag hose: PVC;

Khoom siv lub cev: Hard Anodized Aluminium;

Ua haujlwm siab: 0.6-1.4MPa;

Qhov zoo: Flush Function muaj los ntxuav lub nozzle;

Coupling: STORZ, NH, John Morris, GOST, Machino, thiab lwm yam.

Khoom Parameters

Qauv nab npawb	Ua Haujlwm Siab	Tus nqi ntws	Kev sib txuas	Foam Solution Ratio
PHF/B4	0.6-1.4MPa	240 LPM	1.5 '' lossis 2.5 ''	0.25%, 0.5%, 1%, 3%, 6% adjustable
PHF/B6	0.6-1.4MPa	360 LPM	1.5 '' lossis 2.5 ''	0.25%, 0.5%, 1%, 3%, 6% adjustable
PHF/B8	0.6-1.4MPa	480 lpm ua	1.5 '' lossis 2.5 ''	0.25%, 0.5%, 1%, 3%, 6% adjustable

FAQ

Q: Hauv -Line Foam Mixer ua haujlwm li cas?

Nws ua haujlwm raws li Venturi Effect.
Thaum cov dej ntws los ntawm ib qho kev txwv ntawm cov khoom sib tov, nws tsim ib qho kev poob siab uas rub ua npuas ncauj rau hauv cov kwj dej, ua kom muaj kev sib xyaw kom zoo.

Q: Dab tsi yog qhov sib xyaw sib xyaw ua ke?

Hom foam proportioning ratios muaj xws li:

1% (rau qhov hluav taws kub phom sij)
3% (hydrocarbon roj)
6% polar solvents

Qhov sib piv yog nyob ntawm hom ua npuas ncauj concentrate thiab hluav taws kub.

Q: Hauv -Line Foam Mixers siv nyob qhov twg?

Lawv yog dav siv nyob rau hauv:

Hluav taws hose kab
Cov tsheb tua hluav taws
Muaj kev tiv thaiv hluav taws
Cov khoom siv roj & roj
Airports thiab hangars

Q: Dab tsi yog qhov zoo ntawm Hauv -Line Foam Mixers?
Yooj yim thiab raug nqi - tsim tau zoo
Tsis xav tau lub zog sab nraud
Yooj yim rau nruab thiab khiav lag luam
Txhim khu kev ua tau zoo nrog kev saib xyuas tsawg

Q: Cov kev txwv yog dab tsi?
Yuav tsum muaj dej ruaj khov thiab txaus tus nqi
Kev poob siab thoob plaws lub cuab yeej
Kev txwv tsis pub muaj piv rau cov txheej txheem kev faib ua qib siab
Tsau sib tov piv (tsis adjustable ntawm ya)
