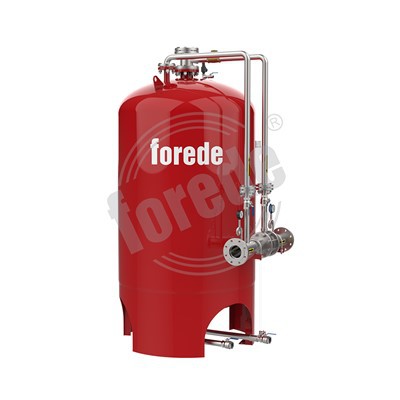

Ua Npuas Ncauj Lub Kua Dej Tank Puv Cov Txheej Txheem

Khoom Taw qhia:

FOREDE Ua Npuas Ncauj Quav zais zis tuaj yeem muab faib ua hom kab rov tav, hom ntsug, nrog cov zais zis zais zis, tsis muaj cov roj hmab zais zis, ib qho sib npaug sib xyaw, kev tov ob npaug, thiab lwm yam raws li cov qauv hom. Tus neeg siv tuaj yeem xaiv raws li qhov xav tau tiag tiag xav tau thiab qhov chaw ntawm chaw teeb tsa.

Xa kev nug

npuas zais zis tank

Hauj lwm lawm

Kev tsis

Thaum lub tshuab hluav taws kub tiv thaiv cov dej nkag rau hauv cov khoom siv, ib feem ntawm nws nkag mus rau hauv lub taub dej los ntawm cov dej inlet valve, thiab cov kua dej ua npuas tawm tau nias tawm ntawm lub qhov hluav taws xob ua kua rau hauv cov khoom sib npaug thiab sib xyaw nrog cov dej siab ntws los ntawm cov sib npaug. kev tov khoom los ua npuas dej sib tov, uas yog xa mus rau Cov Khoom Tsim hluav taws xob ua npuas ncauj, tsim npuas dej, thiab ua tiav hluav taws kev ua haujlwm.

_20210302105052

Specification

Qauv	DN	L (hli)	L1 (hli)	L2 (hli)	H (hli)	H1 (hli)	B (hli)	B1 (hli)	Inlet& Qhov Ncauj
PHYML-300	600	800	380	820	1700	950	800	520	DN65
PHYML-500	700	900	380	820	1950	950	900	570	DN65
PHYML-600	700	900	380	820	2200	950	900	570	DN65
PHYML-800	900	1100	380	820	1900	950	1100	680	DN65
PHYML-1000	1100	1300	380	900	2000	950	1450	800	DN100
PHYML-1200	1100	1300	380	900	1850	950	1450	800	DN100
PHYML-1500	1200	1400	380	900	2100	950	1450	680	DN100
PHYML-2000	1400	1600	380	900	2150	950	2000	930	DN150
PHYML-3000	1600	1800	380	900	2200	950	2150	1060	DN150

* Lwm yam ua npuas ncauj plhaw zais zis me me tuaj yeem ua raws li qhov xav tau, tsuas yog hu rau peb kom paub meej.

Qauv	Peev Xwm (Litres)	Txaus Tus Nqi (LPS)	Ntws Ntau (LPS)	Nyob W.Pressure (bar)	W.Pressure Range (bar)	Ntsuas piv
PHYML-200	200	24	4 - 24	16	6 - 16	3% lossis 6%
PHYML-300	300
PHYML-500	500
PHYML-600	600
PHYML-800	800	32	8 - 32
PHYML-1000	1000
PHYML-1200	1200
PHYML-1500	1500
PHYML-2000	2000
PHYML-2500	2500	48	12 - 48
PHYML-3000	3000	48	12 - 48

* Lwm tus nqi ntws muaj, tiv tauj peb kom paub ntau ntxiv.

Cim npe nrov: ua npuas ncauj zais zis tank txheej txheem sau, Tuam Tshoj, tuam ntxhab, lwm tus muag khoom, lag luam wholesale, nqi

- Ua Rau Ntawm Cov Neeg Siv Khoom' kev xaiv

- Tsim Siab 175 psi (12.1 bar)

- Cov zais zis hauv polyester txhawb ntxiv hypalon-neoprene polymers

- Tso zis tso tsheb hlau luam yog oversized mus cia mloog zoo thermal nthuav (ntim nthuav nyiaj)

- Nameplate hauv cov khoom siv tiv thaiv corrosion

- Tshuab tshuab Argon-arc welded circumferential thiab longitudinal leeg rau ntau qhov ua tau zoo thiab kav ntev
- Welded lifting lugs rau kev tuav haujlwm yooj yim
-Nyem valve muab ntawm sab ntug dej

-OEM ua haujlwm tau
