Hluav Taws Xob Hluav Taws Xob Saib Xyuas

Fire Electrical Fire Monitoring

Hluav Taws Xob Hluav Taws Xob Saib Xyuas

Khoom Taw qhia:

Hluav taws kub saib xyuas tej thaj chaw deb yog ib qho cuab yeej tseem ceeb uas cov neeg tua hluav taws siv los tiv thaiv lub neej thiab khoom. Lawv muaj ntau yam, ua tau zoo, thiab muaj kev nyab xeeb, uas ua rau lawv muaj kev xaiv zoo rau kev tua hluav taws hauv ntau qhov xwm txheej. Nrog rau kev cob qhia thiab cov cuab yeej tsim nyog, cov neeg tua hluav taws tuaj yeem siv cov kev saib xyuas no kom tib neeg thiab cov khoom muaj kev nyab xeeb, thiab pab tiv thaiv kev sib kis ntawm hluav taws kub.

Xa kev nug

Hauj lwm lawm

Kev tsis

Khoom Description

Feature

Aluminium alloy siv, nyuaj anodized;
Tsis tu ncua lossis Selectable flow rate;
Vertical taug kev ntawm 180 degree, ntawm -90 degree rau +90 degree ;
340 degree tig kab rov tav;
Hluav taws xob tswj jetting qauv: Ncaj kwj, Fog;
Electric.driver thiab tswj lub thawv yog waterproof;
Yeem fais fab mov 12V / 24V DC (yeem), lossis 100-230AC.

Qauv	PSKD8/20W-B	PSKD8/30W-B	PSKD8/40W-B	PSKD8/20-40W-B
Tus nqi ntws	1200 LPM Tsis tu ncua	1800 LPM Tsis tu ncua	2400 LPM Tsis tu ncua	1200-1800-2400 LPM Xaiv tau ntws
Ua Haujlwm Siab	8bar ua
Max. Mus txog	50 m	60 m	65 m	50-65 m
Max. Fog Angle	120 degree
Max Range Ntawm Motion	-90 degree rau +90 degree Vertically, 340 degree Kev sib hloov, lwm yam degree muaj
Fais fab mov	DC 24V yog tus qauv
Kev siv fais fab	Tsawg dua lossis sib npaug li 200W
Txoj Kev Loj	2 1/2" (65mm)
Saib xyuas qhov hluav taws xob	2 1/2" (65mm) NH txiv neej xov
Saib xyuas Inlet	Flange 2.5 "ANSI 150 # yog tus qauv, lwm qhov loj thiab tus qauv muaj
Khoom siv	Saib - SS304 stainless hlau yog tus qauv, SS316 yog muaj Nozzle - Hard coated anodized aluminium alloy

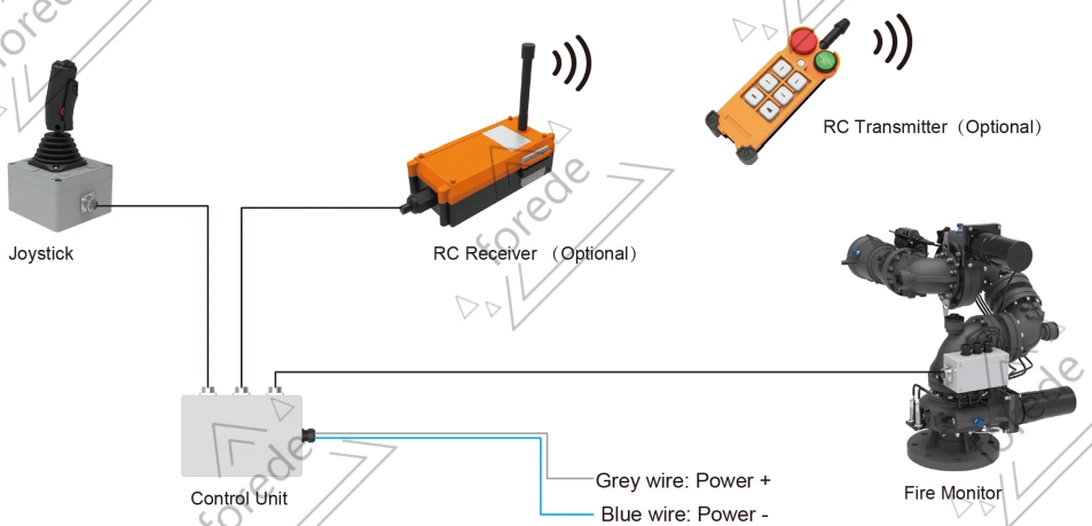

Tswj System	ICS-01 lossis VMCS-01

KR5D2BTK4CB2S18BDVKT

Cov khoom nug

PSKD20-40B

Q. Koj puas muab cov qauv dawb rau koj cov neeg siv khoom?

A: Yog, peb muab cov qauv dawb rau ntau yam khoom

Q. MOQ ntawm koj cov khoom yog dab tsi?

A: Peb MOQ yog ib qho (1) daim / teeb.

Q. Koj cov nqe lus them nqi yog dab tsi?

A: Peb lees txais T / T, L / C, Western Union, Paypal, thiab lwm yam.

Q. Lub sijhawm khoom xa tuaj ntev npaum li cas?

A: Feem ntau nyob ib ncig ntawm 15 hnub tom qab them nyiaj.

Cov ntaub ntawv xaj

Nyob zoo cov neeg muas zaub,

Ua ntej kev txiav txim, thov hu rau peb pab neeg muag khoom los tham txog kev txiav txim cov ntaub ntawv, xws li Tus Qauv Zauv, Flow Rate, Khoom siv, Txoj Kev Tswj, Pob, thiab lwm yam.

Yog tias koj muaj lwm yam kev xav tau lossis xav paub ntau ntxiv txog peb cov khoom, txais tos hu rau thiab. Peb pab neeg muag khoom thiab Technical Department txaus siab pab txhawb koj.
