Khoom Description

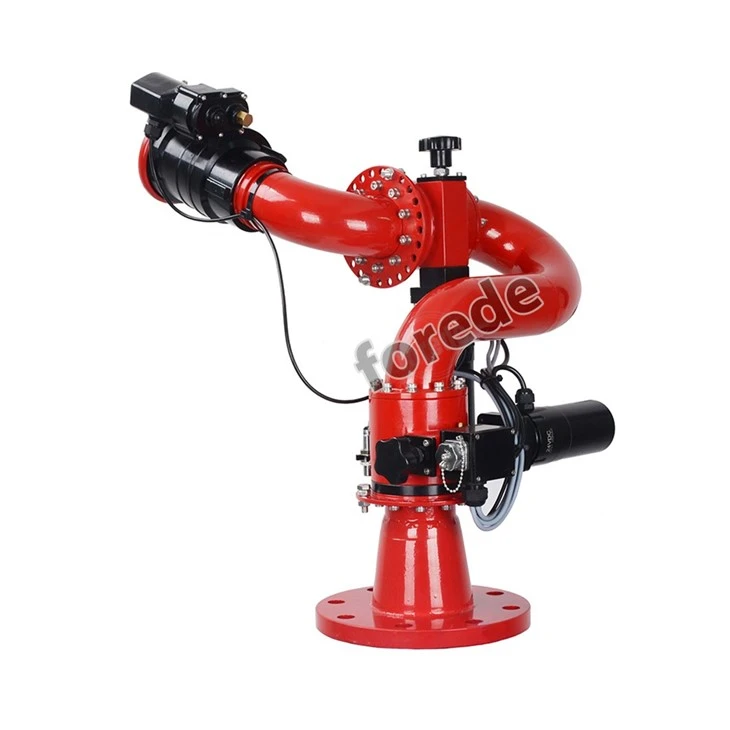

Lub Elevated Fire Monitor Nrog Chaw Tswj Xyuas Chaw Taws Teeb yog tsim los ntawm SS304, ua rau nws tsim nyog siv rau hauv tsheb tua hluav taws, tsheb thauj dej, kev lag luam thiab tshuaj lom neeg. Nrog rau cov chaw taws teeb tswj qhov deb li ntawm 150 meters, nws muaj Joystick, ua kom yooj yim rau tus neeg tsav tsheb khiav lag luam.
Qhov Elevated Fire Monitor muaj ntau yam tshwj xeeb thiab qhov zoo. Qhov thib ib yog nws cov khoom siv zoo, uas tuaj yeem tiv taus kev siv hnyav thiab raug rau cov huab cua hnyav. Tsis tas li ntawd, cov chaw taws teeb tswj qhov system ua rau nws yooj yim rau tus neeg teb xov tooj los tswj thiab tsom lub cannon kom raug. Qhov no feature yog tshwj xeeb tshaj yog tseem ceeb nyob rau hauv daim ntawv thov uas meej lub hom phiaj yog qhov tseem ceeb.
Qhov Elevated Fire Monitor no yog kev nqis peev zoo rau koj cov kev xav tau kev tua hluav taws thiab xa dej. Nws cov qauv tsim muaj zog, kev ua haujlwm zoo, thiab kev nyab xeeb ua haujlwm ua rau nws qhov kev xaiv zoo tshaj plaws rau kev siv hauv ntau yam lag luam. Tiv tauj peb hnub no kom paub ntau ntxiv txog yuav ua li cas Cov Hluav Taws Xob Hluav Taws Xob tuaj yeem muab tso rau hauv koj txoj haujlwm.
Technical Parameter
| Qauv |
PSKD20A
|
PSKD30A
|
PSKD40A
|
PSKD20-40A
|
|
Tus nqi ntws |
1200 LPM |
1800 LPM |
2400 LPM |
1200-1800-2400 LPM kho tau |
|
Ua Haujlwm Siab |
8 Bar |
8 Bar | 8 Bar | 8 Bar |
|
Max. Mus txog |
53m ua |
60 meters |
65m ua |
53-65 meters |
|
Max. Fog Angle |
120 degree |
|||
|
Max Range Ntawm Motion |
-90 degree rau +90 degree Vertically, 360 degree tig |
|||
| ceev ceev | 12 degree / thib ob tig, 8 degree / thib ob ntsug | |||
| Fais fab mov | DC 24 V; AC 220 V | |||
|
Txoj Kev Loj |
2.5 '' (65mm) |
|||
|
Saib xyuas qhov hluav taws xob |
2.5 '' nH txiv neej xov |
|||
|
Saib xyuas Inlet |
Flange 4 "BS4504 yog tus qauv (lwm qhov ntau thiab tsawg thiab cov qauv muaj) |
|||
|
Khoom siv |
Saib xyuas - SS304 Nozzle - Hard coated anodized aluminium alloy |
|||
FAQ
Hu rau US
Peb qhov chaw nyob
TSIS MUAJ.278-1, MEITING VILLAGE, MEILIN SUB-DISTRICT, NAN'AN CITY, QUANZHOU CITY, FUJIAN PROVINCE, Suav teb.
Xov tooj
0086-13107856309 (WhatsApp)
Hais txog US
QUANZHOU FOREDE FIREFIGHTING EQUIPMENT CO., LTD.
Txij li thaum lub tuam txhab tau pom nyob rau hauv 2003, FOREDEFIRE tau hloov zuj zus thiab loj hlob los ntawm ib tug me me Hoobkas nyob rau hauv lub vaj nrog lub peev xwm tsuas yog ua sprinklers, mus rau ib tug sophisticated thiab ua lub tuam txhab.
Xyoo 2013, FOREDEFIRE tsim cov hauv paus tsim khoom hauv Sanduo Industry Park, Jiangsu PRC los txhim kho thiab txhim kho hluav taws xob saib xyuas, hluav taws kub tsis zoo, ua npuas dej system, hluav taws kub neeg hlau thiab lwm yam. Ua kom muaj kev tsim khoom thiab txhim kho kev lag luam thiab kev tswj hwm tus nqi kom haum rau peb txoj kev loj hlob ntxiv.
loj enterprise scale
Cov khoom siv tau zoo thiab raug ua tiav thiab kuaj cov khoom siv.
Standardized ntau lawm
Dhau ISO9001, CE daim ntawv pov thawj thiab tau txais daim ntawv pov thawj patent.
High-Quality Customized Services
Tsis muaj kev sib txuas nruab nrab, muab kev pabcuam ib-nres los ntawm kev tsim, kev ua haujlwm, pwm sim mus rau ntau lawm.
Chaw Ua Haujlwm Saib - Hluav Taws Nozzle & Saib Xyuas
Cim npe nrov: electro hydraulic hluav taws saib xyuas, Tuam Tshoj, manufacturers, lwm tus neeg, lag luam wholesale, nqe
1) SS304 kev tsim kho.
2) 1200-1800-2400 LPM ntws tus nqi (tsis tu ncua lossis hloov tau).
3) Muaj rau pos huab thiab ncaj jetting.
4) 360 degree kev sib hloov, -90 degree rau + 90 degree Elevate
5) Yooj yim rau kev pabcuam thiab kho.
6) Wireless thiab phau ntawv tswj.
7) Lub teeb yuag ruaj khov zoo.
