Khoom Description

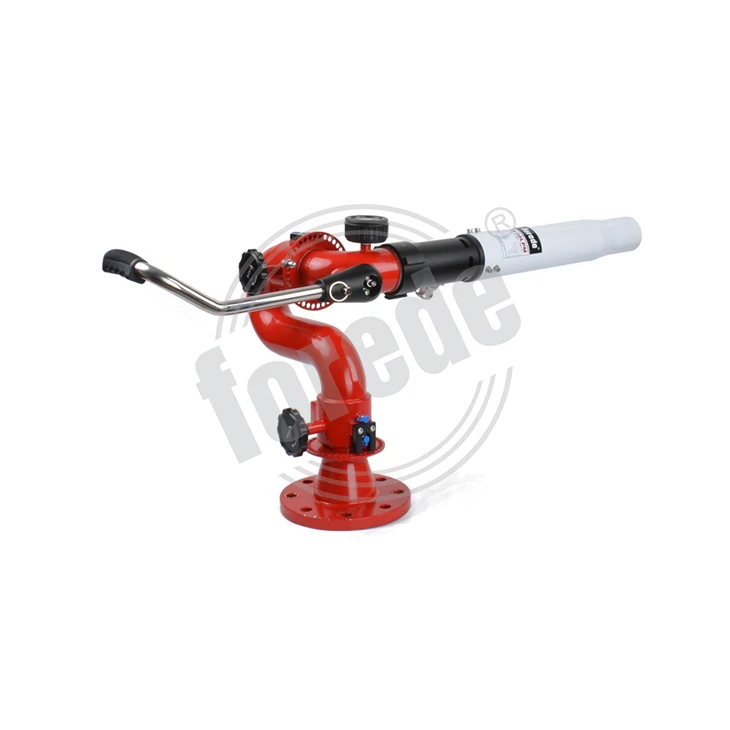

Tiller Ua Haujlwm Hluav Taws Xob Dej Ua Npuas Ncauj Saib
forede Tiller Ua Haujlwm Hluav Taws Xob Dej Ua Npuas Ncauj Saib Xyuas yog cov khoom siv hluav taws xob tua hluav taws, uas muaj tag nrho SS304 stainless hlau kev tsim kho, kev sib koom ua ke tiller tswj, thiab dej / ua npuas dej dual - nruab nrab kev sib raug zoo. Engineered rau agility thiab durability, nws ua hauj lwm ntawm 0.8-1.0 MPa nrog ib tug 20/30/40LPS, txaus tus nqi, 65m (dej)/60m (ua npuas ncauj) siab tshaj plaws kwj nrug deb, thiab 360℃kab rov tav/-25℃rau +80 degree-txoj hauj lwm ntsug. Tus qauv SS304 tiv thaiv cov tshuaj ntsev, ua npuas dej, thiab tshuaj lom neeg, thaum lub tshuab tsim tawm tshem tawm cov hluav taws xob, ua kom muaj kev ntseeg siab hauv cov hluav taws xob hluav taws xob lossis qhov chaw tawg.
tuav
Ua Haujlwm Siab
Nruab nrab
Warranty
Specification
| Qauv nab npawb | TFS1.AP020 | TFS1.AP030 | TFS1.AP040 |
| Tus nqi ntws | 1200 LPM | 1800 LPM | 24 00 LPM |
| Ua Haujlwm Siab | 8bar ua | 8bar ua | 8bar ua |
| Max.Reach@8 Bar Dej | 5 5 m | 60 meters | 65m ua |
| Max.Reach@8 Bar Ua Npuas Ncauj | 50 meters | 5 5 m | 60 meters |
| Max Range of Motion |
-45℃rau +75℃Vertically, 360℃tig
|
||
| Txoj Kev Loj | 2.5 '' (65mm) | ||
| Saib xyuas qhov hluav taws xob |
2.5 "(65mm) NH txiv neej xov
|
||
| Saib xyuas Inlet |
Flange 3 "ANSI 150 yog tus qauv (lwm qhov ntau thiab tsawg thiab cov qauv muaj)
|
||
| Khoom siv |
Saib xyuas - SS304 Stainless Hlau
Nozzle - SS304 Stainless hlau + tooj dag
Tiller - SS304 Stainless hlau + Aluminium Alloy
|
||
Cov duab ntxaws
Nthuav lus nug
Cov lus nug nquag
Q: Lub sij hawm tsim khoom ntawm tus qauv yog dab tsi?
-
A: Ib qho qauv yuav tsim nyob rau hauv 15 hnub.
Q.Kuv tuaj yeem tau txais tus nqi li cas?
-
A: Peb feem ntau hais tsis pub dhau 24 teev tom qab peb tau txais koj qhov kev nug (Tshwj tsis yog hnub so thiab hnub so).Yog tias koj ceev heev kom tau txais tus nqi, thov xa email rau peb lossis tiv tauj peb lwm txoj hauv kev kom peb tuaj yeem muab cov lus qhia rau koj.
Q. Kuv puas tuaj yeem yuav cov qauv txiav txim?
-
A: Yog. Thov koj xav tiv tauj peb.
Q.Dab tsi yog txoj kev xa khoom?
-
A: Nws tuaj yeem xa los ntawm hiav txwv, los ntawm huab cua lossis los ntawm kev nthuav qhia (EMS, UPS, DHL, TNT, FEDEX thiab ect). Thov paub meej nrog peb ua ntej muab xaj.
Q.Ua li cas koj ua rau peb lub lag luam ntev -lub sij hawm thiab kev sib raug zoo?
-
A: Peb khaws cov khoom zoo thiab cov nqi sib tw kom ntseeg tau tias peb cov neeg siv khoom tau txais txiaj ntsig thiab hwm txhua tus neeg siv khoom raws li peb cov phooj ywg thiab peb ua siab dawb ua lag luam thiab ua phooj ywg nrog lawv, txawm lawv tuaj qhov twg los.
