Khoom Description

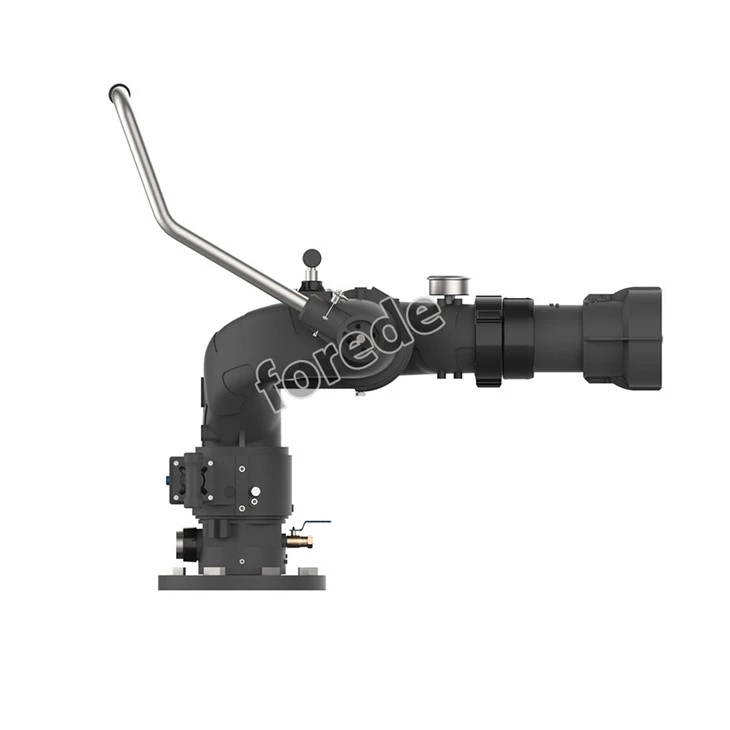

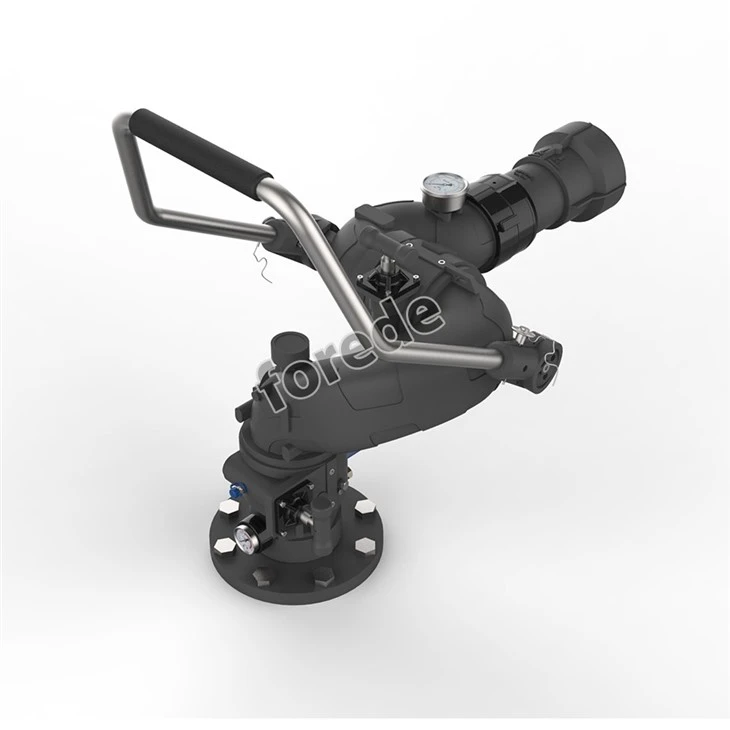

PS_B series phau ntawv hluav taws saib xyuas yog lub peev xwm hluav taws kub saib xyuas tsim los siv rau ntau qhov chaw. Qhov ntsuas hluav taws kub no yog tswj los ntawm kev tuav tes, thiab yog tsim los ntawm cov khoom siv tawv anodized aluminium alloy uas tiv taus qhov cuam tshuam, corrosion, thiab txhua yam hnav thiab tsim kua muag.
PS_B series phau ntawv hluav taws saib xyuas yog tsim los xa cov dej thiab ua npuas dej ntau, ua rau nws zoo tagnrho rau siv hauv cov ntawv thov tua hluav taws uas yuav tsum tau muaj tus nqi siab los tua hluav taws loj. Nws cov ntaub ntawv siv tau raug xaiv rau lawv cov kav ntev thiab tsis kam mus rau qhov hnyav tshaj plaws ib puag ncig.
Cov tshuaj tua hluav taws no zoo tagnrho rau siv rau hauv cov chaw lag luam, cov chaw lag luam, thiab cov chaw nyob loj, uas ua rau muaj kev phom sij. Nws yog tsim rau siv nyob rau hauv cov roj thiab roj chaw, tshuaj nroj tsuag, refineries, tshav dav hlau hangars, loj cia tsev, thiab lwm yam uas muaj kev pheej hmoo.
Txawm hais tias nws qhov ntim siab npaum li cas, PS_B series phau ntawv hluav taws kub saib xyuas tau yooj yim los tswj thiab tuaj yeem ua haujlwm nrog kev siv zog tsawg, ua tsaug rau nws cov qauv tsim ergonomically thiab ceev cov lus teb nozzle. Lub monitor muaj ntau hom kev txav uas ua rau cov neeg ua haujlwm coj dej thiab ua npuas dej rau txhua qhov chaw ntawm qhov hluav taws kub, ua rau nws ua tau zoo thiab muaj txiaj ntsig zoo hauv kev siv hluav taws kub.
Hauv kev xaus, PS_B series phau ntawv hluav taws saib xyuas muaj kev ua tau zoo dua, ua haujlwm ntev thiab yooj yim ntawm kev ua haujlwm, ua rau nws yog ib qho tseem ceeb hauv kev tua hluav taws loj hauv qhov chaw muaj kev pheej hmoo siab. Tiv tauj peb kom paub ntau ntxiv txog qhov ntsuas hluav taws kub zoo no thiab nws tuaj yeem tiv thaiv koj thaj chaw li cas los ntawm hluav taws kub.
Technical Parameter
| Qauv |
PS50B
|
PS60B
|
PS80B
|
PS 100B
|
|
Tus nqi ntws |
3000 LPM |
3 600 LPM |
4 800 LPM |
6 000 LPM |
|
Ua Haujlwm Siab |
8.5 Bar ib |
9.5bar ua | 10 Bar | 12 Bar |
|
Max. Mus txog |
75m ua |
75m ua |
85m ua |
85m ua |
|
Max. Fog Angle |
120 degree |
|||
|
Max Range Ntawm Motion |
-75 degree rau +90 degree Vertically, 360 degree tig |
|||
|
Txoj Kev Loj |
4 '' (100mm) |
|||
|
Saib xyuas qhov hluav taws xob |
3.5 '' nH txiv neej xov |
|||
|
Saib xyuas Inlet |
Flange 4 "BS4504 yog tus qauv (lwm qhov ntau thiab tsawg thiab cov qauv muaj) |
|||
|
Khoom siv |
Saib & Nozzle - Hard coated anodized aluminium alloy Handwheel - Hard coated anodized aluminium alloy |
|||
FAQ
Hu rau US
Peb qhov chaw nyob
TSIS MUAJ.278-1, MEITING VILLAGE, MEILIN SUB-DISTRICT, NAN'AN CITY, QUANZHOU CITY, FUJIAN PROVINCE, Suav teb.
Xov tooj
0086-13107856309 (WhatsApp)
Hais txog US
QUANZHOU FOREDE FIREFIGHTING EQUIPMENT CO., LTD.
Txij li thaum lub tuam txhab tau pom nyob rau hauv 2003, FOREDEFIRE tau hloov zuj zus thiab loj hlob los ntawm ib tug me me Hoobkas nyob rau hauv lub vaj nrog lub peev xwm tsuas yog ua sprinklers, mus rau ib tug sophisticated thiab ua lub tuam txhab.
Xyoo 2013, FOREDEFIRE tsim cov hauv paus tsim khoom hauv Sanduo Industry Park, Jiangsu PRC los txhim kho thiab txhim kho hluav taws xob saib xyuas, hluav taws kub nozzle, ua npuas dej system, hluav taws kub neeg hlau thiab lwm yam. Ua kom muaj kev tsim khoom thiab txhim kho cov khoom zoo thiab cov nqi tswj kom haum rau peb txoj kev loj hlob ntxiv.
loj enterprise scale
Cov khoom siv tau zoo thiab raug ua tiav thiab kuaj cov khoom siv.
Standardized ntau lawm
Dhau ISO9001, CE daim ntawv pov thawj thiab tau txais daim ntawv pov thawj patent.
High-Quality Customized Services
Tsis muaj kev sib txuas nruab nrab, muab kev pabcuam ib-nres los ntawm kev tsim, kev ua haujlwm, pwm sim mus rau ntau lawm.
Chaw Ua Haujlwm Saib - Hluav Taws Nozzle & Saib Xyuas
Cim npe nrov: hluav taws saib daim ntawv teev npe, Tuam Tshoj, tuam ntxhab, lwm tus muag khoom, lag luam wholesale, nqe
1) Aluminium alloy kev tsim kho.
2) 3000 / 3600 / 4800 / 6000 LPM ntws tus nqi (tsis tu ncua ntws).
3) Muaj rau pos huab thiab ncaj jetting.
4) 360 degree kev sib hloov, -75 degree rau + 90 degree Elevate
5) Yooj yim rau kev pabcuam thiab kho
6) Lub teeb yuag ruaj khov zoo.
