Khoom Description

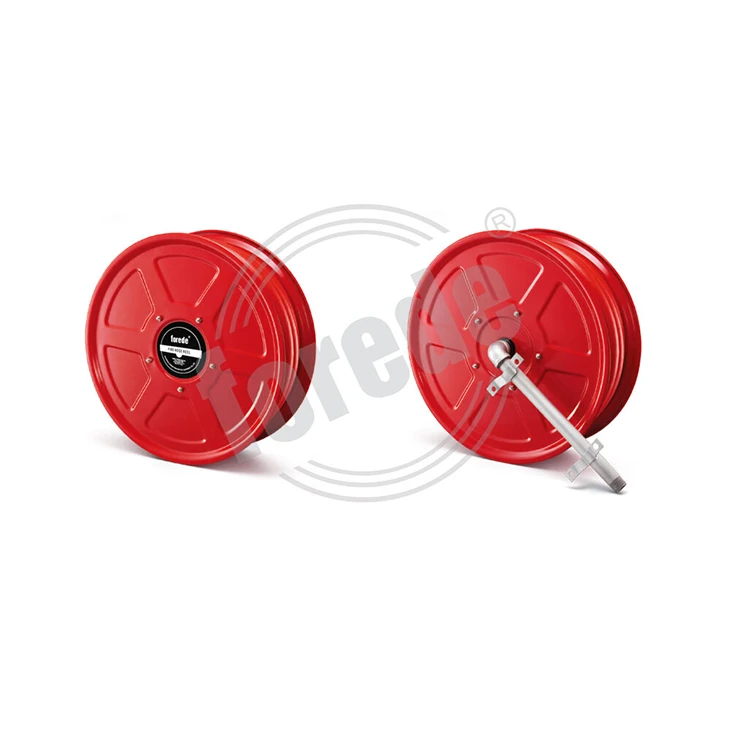

forede ® Tsis-Swinging Hluav Taws Hose Reel
Ib qho ntawm cov yam ntxwv tseem ceeb ntawm peb lub forede® Non-Swinging Fire Hose Reel yog nws hom inlet valve. Koj tuaj yeem xaiv los ntawm lub pob valve, lub rooj vag valve, thiab BSP xov, uas yog cov qauv xov siv hauv ntau lub tebchaws. Qhov no ua rau koj yooj yim thiab cov kev xaiv thaum nws los teeb tsa koj qhov kev nyab xeeb hluav taws.
Peb Tsis-Swinging Hluav Taws Hose Reel kuj khav theeb ua haujlwm siab tshaj plaws. Koj tuaj yeem xaiv ntawm 1.2Mpa lossis 1.8Mpa ntsuas. Qhov no txhais tau hais tias lub reel tuaj yeem tswj lub siab xav tau los daws txawm tias cov hluav taws kub hnyiab tshaj plaws.
Txhawm rau kom tau txais kev ua tau zoo tshaj plaws ntawm peb Cov Hluav Taws Xob Tsis Siv Hluav Taws Xob, peb pom zoo kom siv nws nrog peb JPSQ01 nozzle thiab liab reel hose. Cov khoom siv ntxiv no yog tsim los ua haujlwm seamlessly nrog peb cov hluav taws kub hose reel, muab koj qhov zoo tshaj plaws thiab kev nyab xeeb hluav taws kub system ua tau.
forede ® Tsis-Swinging Hluav Taws Hose Reel
Khoom Feature
Hose Reel Hom: Tsau hluav taws kub hose reel.
Inlet Valve Hom: Pob Valve, Rooj vag Valve, BSP Xov (Standard).
Max Ua Haujlwm Siab: 1.2Mpa.
Max Ua Haujlwm Siab: 1.8Mpa.
Drum Surface Finishing: Liab hmoov txheej.
Siv nrog JPSQ01 nozzle, Liab reel hose.
Technical Parameter
forede ® Tsis-Swinging Hluav Taws Hose Reel
Lub nruas nto tiav ntawm peb cov forede® Tsis-Swinging Hluav Taws Hose Reel yog ua tiav hauv cov hmoov xim liab. Qhov no tsis yog tsuas yog zoo li sleek thiab kev tshaj lij, tab sis nws kuj tseem pab tiv thaiv lub pob los ntawm kev puas tsuaj thiab corrosion. Peb xav kom peb cov neeg siv khoom muaj cov khoom lag luam uas lawv tuaj yeem tso siab rau xyoo tom ntej.
| Tshooj Naj Npawb | Txoj kab uas hla ntawm Disc | Reel Hose Number | Inlet | Qhov hluav taws xob |
W. Siab |
Xim tiav |
| FHR 500-20 | 500 hli | 20m | 1" | 3/4" | 12 Bar | Liab hmoov txheej |
| FHR 500-25 | 500 hli | 25m | 1" | 3/4" | 12 Bar | Liab hmoov txheej |
| FHR 500-30 | 500 hli | 30m | 1" | 3/4" | 12 Bar | Liab hmoov txheej |
| FHR 500-20 | 500 hli | 20m | 1" | 1" | 12 Bar | Liab hmoov txheej |
| FHR 500-25 | 500 hli | 25m | 1" | 1" | 12 Bar | Liab hmoov txheej |
| FHR 500-30 | 500 hli | 30m | 1" | 1" | 12 Bar | Liab hmoov txheej |
Cov Lus Nquag Nrho
Q: Hom hluav taws kub hose reel yog forede ® Non-Swinging Fire Hose Reel?
Q: Hom inlet valve nws muaj?
Q: Dab tsi yog qhov ua haujlwm siab tshaj plaws ntawm forede ® Non-Swinging Fire Hose Reel?
Q: Dab tsi yog lub nruas nto tiav ntawm forede ® Tsis-Swinging Hluav Taws Hose Reel?
Q: Cov khoom siv dab tsi uas lub forede ® Non-Swinging Fire Hose Reel siv?
Daim ntawv thov cheeb tsam
Cov tsev siab
Cov qauv kev lag luam
Loj Industrial Facilities
Factory Chaw
