Khoom Description

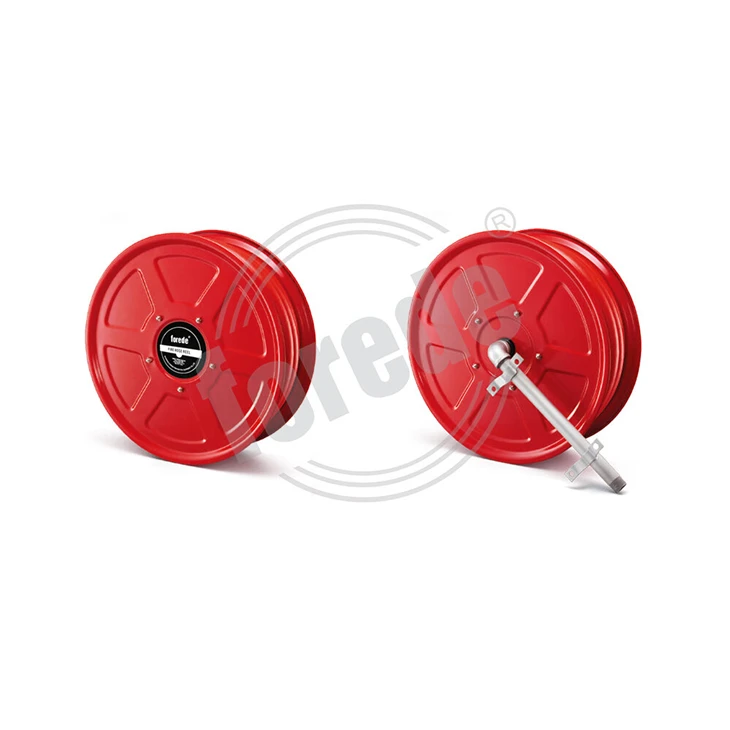

forede ® Fixed Yeeb Nkab Hluav Taws Hose Reel

Lub qhov hluav taws xob thiab qhov hluav taws xob ntawm Cov Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Reel muaj nyob rau hauv ob qhov ntau thiab tsawg: 1 "thiab 3/4" kom haum rau qhov sib txawv ntawm cov neeg siv khoom. Lub reel hose yog ua los ntawm cov ntaub ntawv zoo uas tuaj yeem tiv taus kev kub siab thiab kev puas ntsoog, muab nws ua haujlwm ntev.

forede® Fixed Pipe Fire Hose Reel yog tsim los nrog cov qauv zoo tshaj plaws rau kev nyab xeeb thiab kev ua haujlwm. Cov hmoov liab txheej ntawm lub reel muab nws qhov pom kev zoo, thiab nws yooj yim rau pom thaum muaj xwm txheej ceev. Cov xim tiav tsis tsuas yog pab txhawb kev zoo nkauj tab sis kuj muab cov txheej txheem ntxiv ntawm kev tiv thaiv ib puag ncig.

forede ® Fixed Yeeb Nkab Hluav Taws Hose Reel
forede ® Fixed Yeeb Nkab Hluav Taws Hose Reel
forede ® Fixed Yeeb Nkab Hluav Taws Hose Reel
forede ® Fixed Yeeb Nkab Hluav Taws Hose Reel

Khoom Feature

Hose Reel Hom: Tsau hluav taws kub hose reel.

Inlet Valve Hom: Pob Valve, Rooj vag Valve, BSP Xov (Standard).

Max Ua Haujlwm Siab: 1.2Mpa.

Max Ua Haujlwm Siab: 1.8Mpa.

Drum Surface Finishing: Liab hmoov txheej.

Siv nrog JPSQ01 nozzle, Liab reel hose.

Technical Parameter

forede ® Fixed Yeeb Nkab Hluav Taws Hose Reel

forede® tsau hom hluav taws hose reels yog ib qho cuab yeej tseem ceeb rau kev nyab xeeb hluav taws hauv tsev

Tshooj Naj Npawb	Txoj kab uas hla ntawm Disc	Reel Hose Number	Inlet	Qhov hluav taws xob	W. Siab	Xim tiav
FHR 500-20	500 hli	20m	1"	3/4"	12 Bar	Liab hmoov txheej
FHR 500-25	500 hli	25m	1"	3/4"	12 Bar	Liab hmoov txheej
FHR 500-30	500 hli	30m	1"	3/4"	12 Bar	Liab hmoov txheej
FHR 500-20	500 hli	20m	1"	1"	12 Bar	Liab hmoov txheej
FHR 500-25	500 hli	25m	1"	1"	12 Bar	Liab hmoov txheej
FHR 500-30	500 hli	30m	1"	1"	12 Bar	Liab hmoov txheej

Cov Lus Nquag Nrho

01. Ntev npaum li cas yuav tsum tau kuaj xyuas lub forede® Fixed Pipe Fire Hose Reel?

Lub forede® Fixed Pipe Fire Hose Reel yuav tsum tau tshuaj xyuas tsawg kawg ib xyoos ib zaug kom ntseeg tau tias nws ua haujlwm zoo. Nws raug nquahu kom tus kws tshuaj xyuas kev tshaj lij ua qhov kev tshuaj ntsuam xyuas kom ntseeg tau tias txhua yam khoom siv ua haujlwm zoo.

02.Dab tsi yog forede® Fixed Pipe Fire Hose Reel?

Forede® Fixed Pipe Fire Hose Reel yog cov khoom siv tua hluav taws uas siv los tua hluav taws me me. Nws muaj qhov hluav taws kub hose uas txuas nrog rau cov dej xau thiab yog mounted rau ntawm cov yeeb nkab reel.

03. Hom tsev twg yuav tsum muaj forede® Fixed Pipe Fire Hose Reel?

Forede® Fixed Pipe Fire Hose Reel yuav tsum muaj nyob rau hauv txhua hom tsev, nrog rau cov tsev nyob, kev lag luam, thiab cov tsev lag luam. Lub xub ntiag ntawm qhov hluav taws kub hose reel yog yuam los ntawm txoj cai nyob rau hauv ntau lub teb chaws thiab cheeb tsam.

04.Lub forede® Fixed Pipe Fire Hose Reel ua haujlwm li cas?

Lub forede® Fixed Pipe Fire Hose Reel ua haujlwm los ntawm kev tso dej los ntawm lub hose nozzle thaum nws unrolled. Cov dej xa dej yog qhib los ntawm lub valve uas nyob ntawm lub reel thiab yuav tsum tau qhib los ntawm tus neeg siv.

05.Yuav tsum tau tshuaj xyuas lub forede® Fixed Pipe Fire Hose Reel ntau npaum li cas?
